SUPERBAT 50ft SDI Cable - 3G/6G/12G-SDI BNC Video Cable with Belden 1694A - Professional Grade for Security Cameras, Monitors & HDMI Converters - Perfect for CCTV Installations & Broadcast Studios

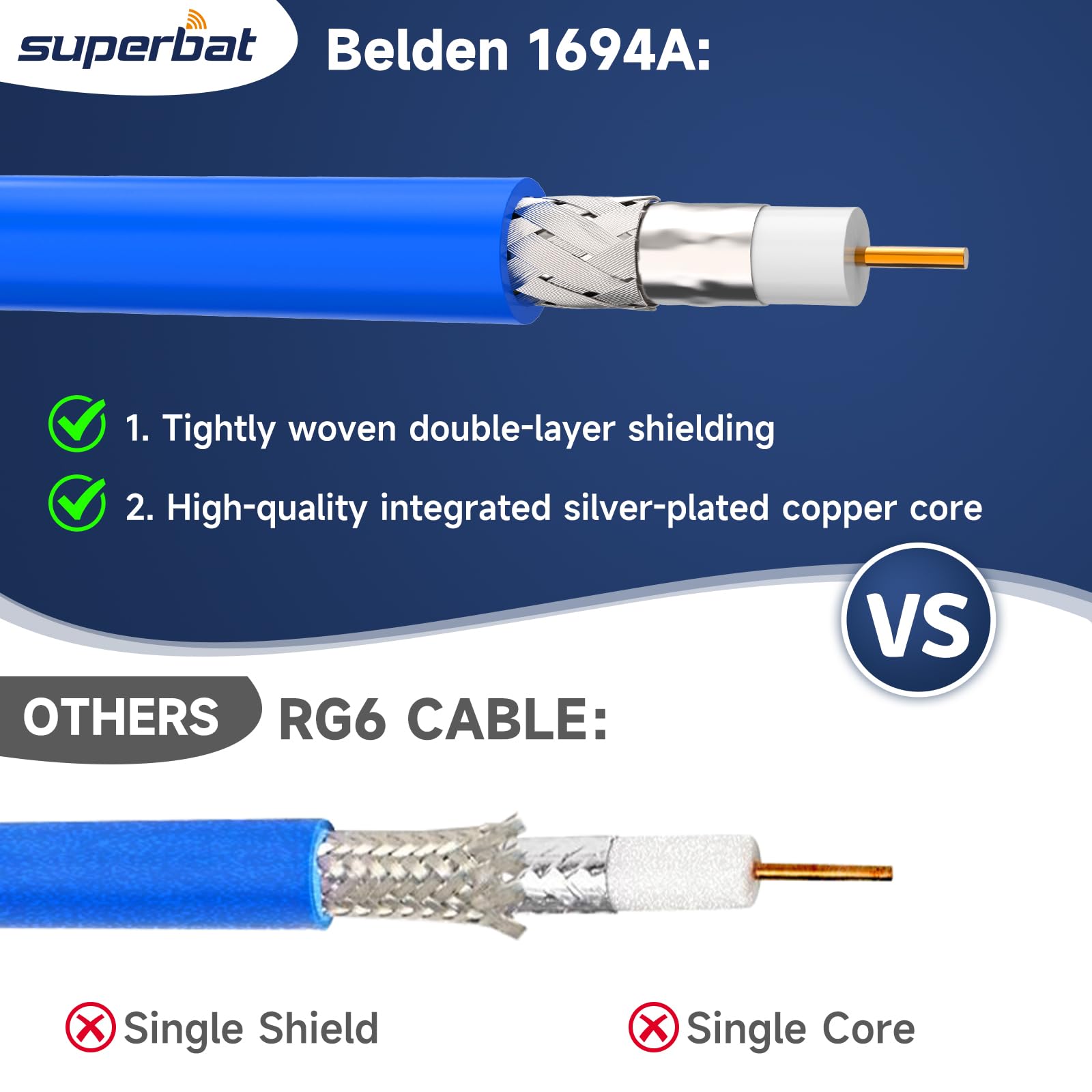

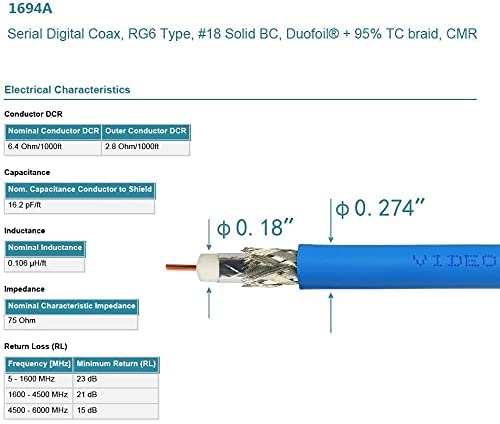

3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A ) Features and Specifications: Nominal impedance: 75 ohms-ideal - for audio and videoVelocity of propagation: 82%Capacitance: 16.2 pF/ft.Nominal attenuation: 0.240 dB/100 ft. @ 1 MHzOverall diameter: 0.274". Serial Digital Data Rates Standard Definition SD-SDI (270 Mbps, ST 259)HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424)6G-SDI (5.94 Gbps, ST 2081)12G-SDI (11.88 Gbps, ST 2082) Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications. Center conductor: 0.40" dia. bare copperDielectric: 0.180" dia. foamed PEShield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI,for excellent noise rejectionPVC outer jacket - for durability and long-term protection. 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables.50-ohm cables/connectors work well with old analog video formats. If you are looking for high-quality video output, 50 Ohm will not give you a high-quality level. 3G 6G 12G SDI Cable Belden 1694A 75 Ohm BNC Video Cable 3m 3G HD SDI Cable Belden 1855A 75 Ohm SDI Video Cable 15m 3G 6G 12G SDI Cable Belden 4855R 75 Ohm BNC Video Cable 30cm 12G SDI Cable Belden 4855R 75 Ohm SDI Video Cable 3m 3G HD SDI Cable RG179 5 Ohm BNC Video Cable 1m Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 5 4.6 out of 5 stars 17 5.0 out of 5 stars 2 — 4.7 out of 5 stars 345 Price $33.39$33.39 $49.99$49.99 $20.39$20.39 $66.26$66.26 $18.27$18.27 Cable type Belden 1694A Belden 1855A Belden 4855R Belden 4694R RG179 Coax Cable Cable length 10ft 50ft 1ft 10ft 3ft
